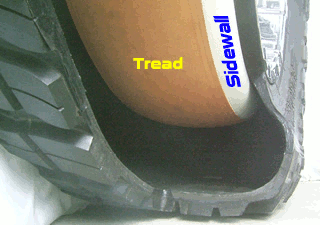

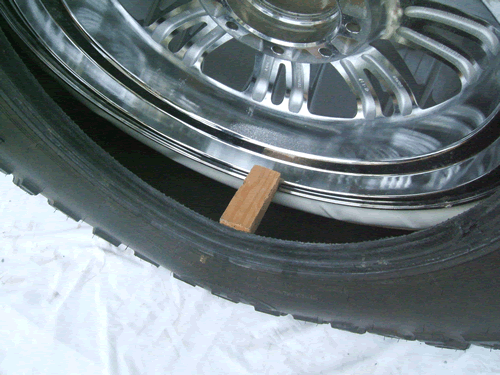

Staun Beadlock Installation Text and photo's contributed by Harry Lewellyn  The Air Channel in Staun Internal Pneumatic Dual Beadlock equipped tires prevents use of the Dyna Beads® Installation Applicator. We will first start with a new tire Dyna Bead installation and then move on to a used tire installation. But regardless, your objective is always the same: Install the Dyna Beads into the tire ensuring that none are allowed to come into contact with the inside of the tire bead, any part of the beadlock or tube, and particularly, the space between the tire bead and the beadlock Bead. Remove the tire from the tire machine just prior to putting the second tire bead over the rim and then turn the tire vertical. This ensures that the Dyna Beads will only touch the inside of the tire tread.  Now place a spacer between the wheel and tire bead to provide working space.  Next, follow the links depending on if you're using EZ Open Bags or Off Road Beads: EZ Open Bags Off Road Beads |
|
